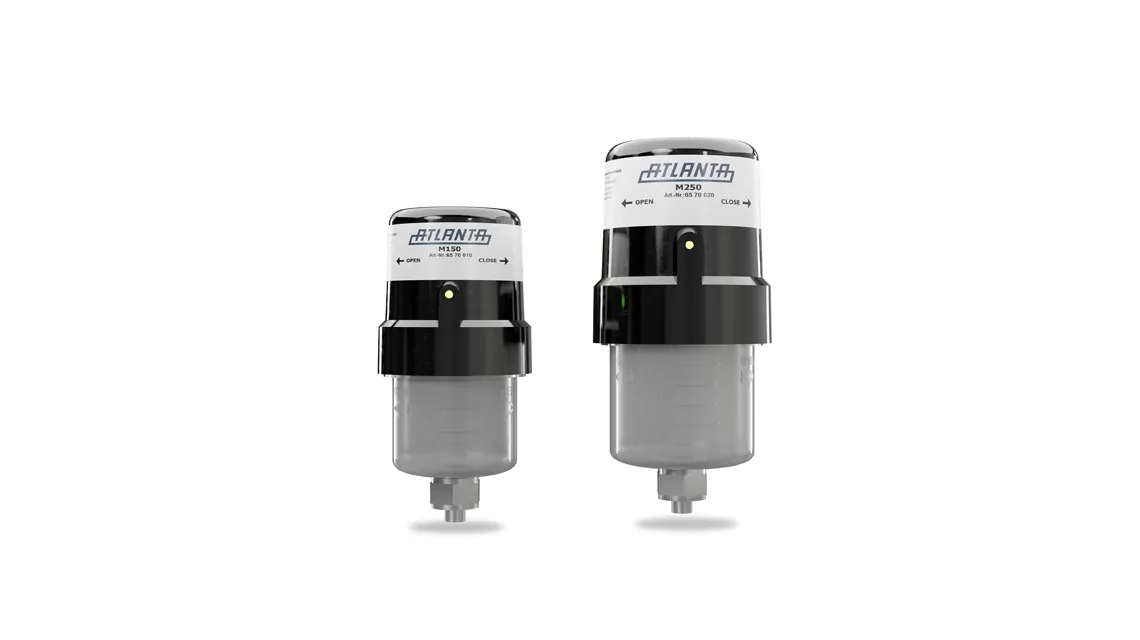

Lubrication System – Type M60 / M150 & M250

Lubrication Systems Type M60 / M150 & M250

Type M - safe automatic lubrication

The lubrication system type M has a robust and very precise drive motor, which is supplied with a 6V Li high performance battery or externally by means of a 24V adapter. The lubricant cartridge - optionally with M60, M150 or M250 ml capacity - is simply screwed to the drive unit. The drive unit is thus reusable.

With a delivery pressure of 7.5 bar, type M operates automatically and temperature-independently for up to one year. The emptying time of the dispenser (dosing of the lubricant) can be freely selected between 1-12 months. It is possible to change the setting or switch off the unit at any time.

The function control of the type M is carried out by a clearly visible LED. In addition, the fill level of the lubricant cartridge is clearly visible at all times through the transparent housing. After complete emptying, further use is possible by refilling.


The advantages of Type M

  • precise, reliable delivery of lubricant
  • battery operation,voltage supply 24V
  • delivery pressure max. 7.5 bar (109 psi)
  • emptying time 1-12 months
  • operating temperature -20 °C to +60 °C
  • visual warning of malfunction (LED)
  • visual inspection of the fill level possible at any time
  • flow rate independent of temperature
  • connection of hose line possible*
  • delivery of oils and greases up to NLGI-cl. 2
  • can be used outdoors
  • special fillings available


Download PDF | Lubrication Systems from Atlanta:


Contact EIE Maskin for more information about our products and ordering:
