Trapezoidal screw 100 kN ZA-series

Trapezoidal screw 100 kN

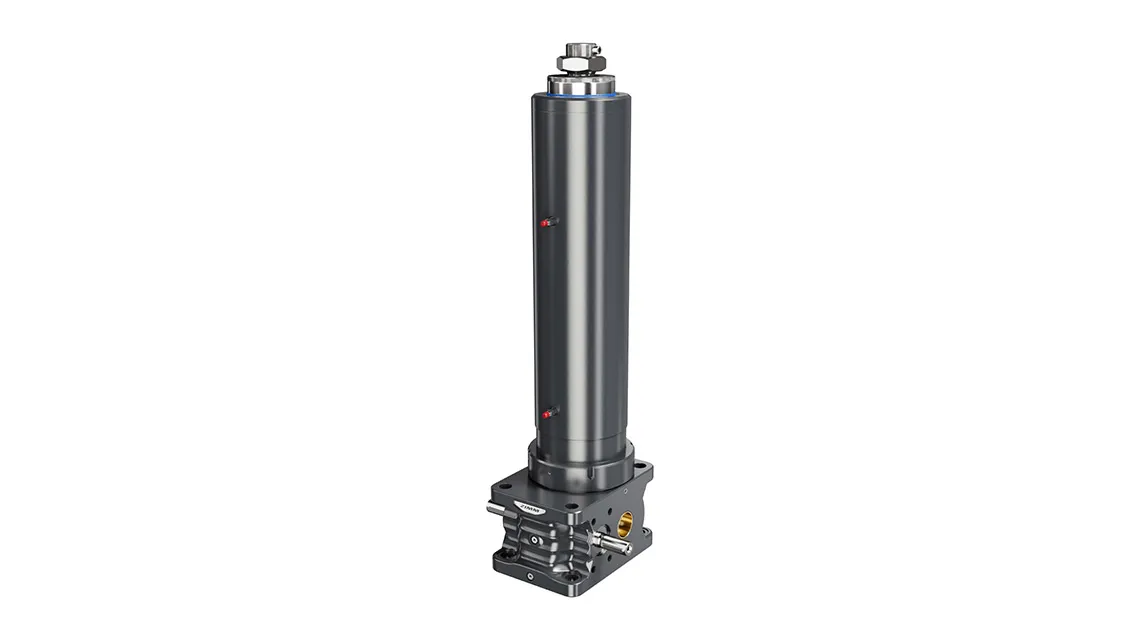

Electromechanical Actuator ZA | 100 kN 55x9 Trapezoidal screw:

Technical specifications

Size:	100 kN
Nominal speed:	1500 rpm
Max. drive shaft speed:	1800 rpm
Screw size standard:	55x9
Housing material:	Aluminium, corrosion-resistant
Worm shaft:	Steel, case-hardened, ground
Material - cylinder tube:	steel
Material - push tube:	Steel chrome plated
Weight of actuator:	64.5 kg
Weight of screw/0.1m:	5.6 kg
Gearbox lubrication:	Synthetic fluid grease
Screw lubrication:	Grease lubrication
Gearbox operating temperature:	max. 60°, higher on request
Moment of inertia:	N: 4.66 kg cm² / L: 3.38 kg cm²
Input torque (at 1500 rpm):	max. 53.4 Nm (N) / max. 13.5 Nm (L)
Drive-through torque:	max. 540 Nm

Electromechanical Actuator ZA | 100 kN 60x9 Trapezoidal screw:

Technical specifications

Size:	100 kN
Nominal speed:	1500 rpm
Max. drive shaft speed:	1800 rpm
Screw size standard:	60x9
Housing material:	Aluminium, corrosion-resistant
Worm shaft:	Steel, case-hardened, ground
Material - cylinder tube:	steel
Material - push tube:	Steel chrome plated
Weight of actuator:	64.5 kg
Weight of screw/0.1m:	5.6 kg
Gearbox lubrication:	Synthetic fluid grease
Screw lubrication:	Grease lubrication
Gearbox operating temperature:	max. 60°, higher on request
Moment of inertia:	N: 4.66 kg cm² / L: 3.38 kg cm²
Input torque (at 1500 rpm):	max. 53.4 Nm (N) / max. 13.5 Nm (L)
Drive-through torque:	max. 540 Nm
