Ball screw 25 kN ZA-series
Ball screw 25 kN

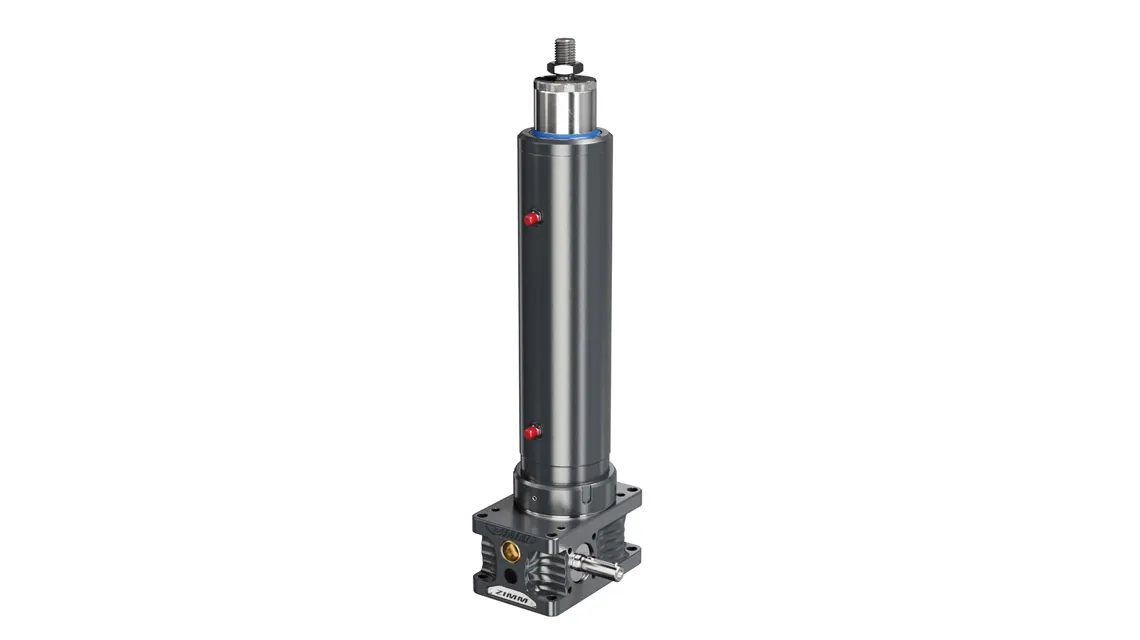

Electromechanical Actuator ZA | 25 kN 32x5 Ball screw:
Technical specifications
| 25 kN | |
| 1500 rpm | |
| 3000 rpm | |
| 32x5 | |
| 24.8 | |
| 49.7 | |
| 0.06 | |
| Aluminium, corrosion-resistant | |
| Steel, case-hardened, ground | |
| steel | |
| Steel chrome plated | |
| 11 kg | |
| 2.4 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 0.957 kg cm² / L: 0.461 kg cm² | |
| max. 18 Nm (N) / max. 10 Nm (L) | |
| max. 108 Nm |
Electromechanical Actuator ZA | 25 kN 32x10 Ball screw:
Technical specifications
| 25 kN | |
| 1500 rpm | |
| 3000 rpm | |
| 32x10 | |
| 24.8 | |
| 49.7 | |
| 0.06 | |
| Aluminium, corrosion-resistant | |
| Steel, case-hardened, ground | |
| steel | |
| Steel chrome plated | |
| 11 kg | |
| 2.4 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 0.957 kg cm² / L: 0.461 kg cm² | |
| max. 18 Nm (N) / max. 10 Nm (L) | |
| max. 108 Nm |
Electromechanical Actuator ZA | 25 kN 32x20 Ball screw:
Technical specifications
| 25 kN | |
| 1500 rpm | |
| 3000 rpm | |
| 32x20 | |
| 24.8 | |
| 49.7 | |
| 0.06 | |
| Aluminium, corrosion-resistant | |
| Steel, case-hardened, ground | |
| steel | |
| Steel chrome plated | |
| 11 kg | |
| 2.4 kg | |
| Synthetic fluid grease | |
| Grease lubrication | |
| max. 60°, higher on request | |
| N: 0.957 kg cm² / L: 0.461 kg cm² | |
| max. 18 Nm (N) / max. 10 Nm (L) | |
| max. 108 Nm | |
| 3.33mm | |
| 6:1 |
Data sheet and Catalogues | Products from ZIMM:
- Data sheet | Electromechanical Actuator 25 kN from ZIMM
- Catalogue | Electromechanical Actuators from ZIMM
- Catalogue | Permissible Loads Actuators from ZIMM
- Catalogue | Lubrication for Electromechanical Actuators from ZIMM
Contact EIE Maskin for more information about our products and ordering:
