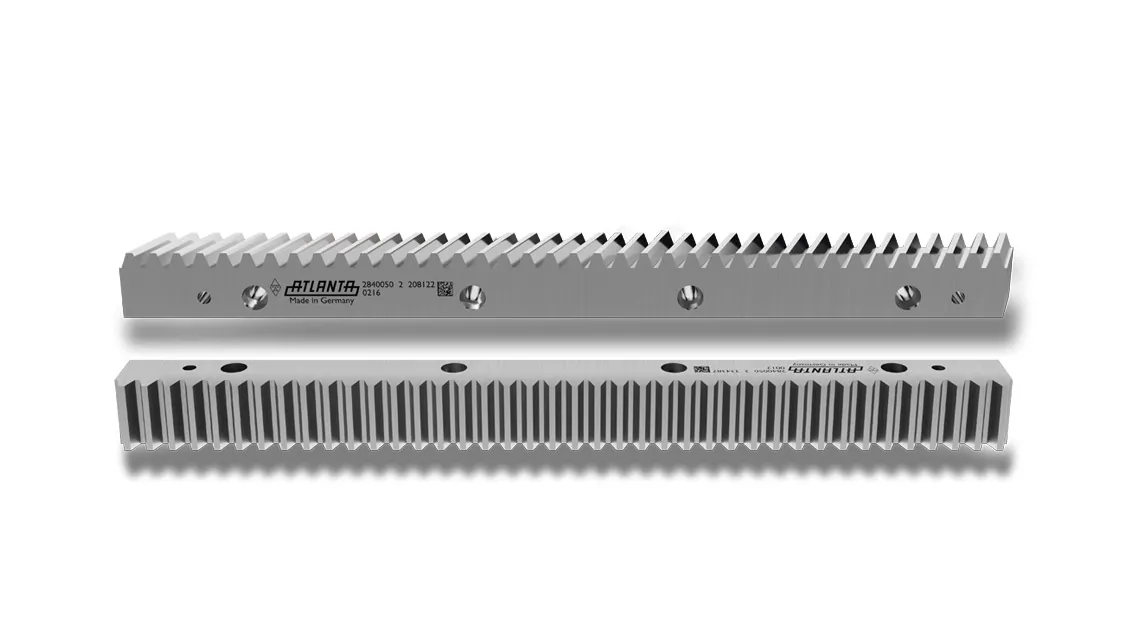

Ultra High Precision Rack – Quality 5


Q5 - Quality Class 5 | Technical Data:

  • Heat-treatable steel acc. ATLANTA-Standard for maximum hardness and high resistance against wear.
  • Teeth hardened with the ATLANTA high-performance hardening process
  • Rack profile ground on all sides for maximum precisionand and smallest linear backlash
  • Total pitch error GTf/1000mm = 0,030mm
  • Tooth thickness tolerance -15µm
  • 19°31'42" helical and straight toothed
  • Module 2 and 3
  • Length of the racks 1000mm
  • Maximum feed force: 19,5 kN (m=2) or 28,5 kN (m=3)


Download PDF | UHPR Q5:


Contact EIE Maskin for more information about our products and ordering:
